2026 Amazone Pantera 7004-W

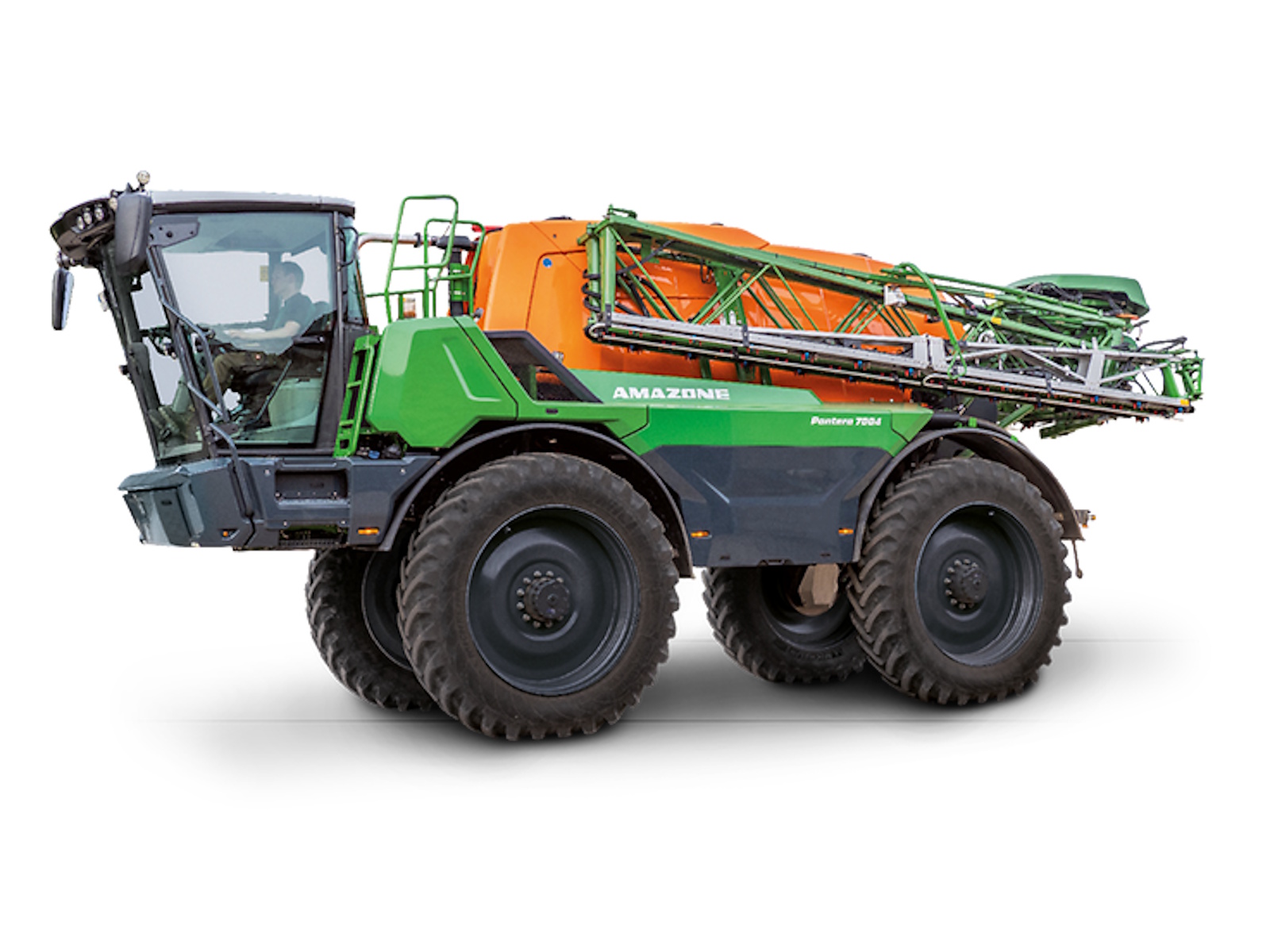

Pantera 7004 self-propelled sprayer

The Pantera 7004 self-propelled crop protection sprayer has a tank capacity of 6,600 l and can be equipped with sprayer booms with working widths from 24 m to 48 m. Stepless track width adjustment as standard makes the Pantera a universal all-rounder, particularly when shared across neighbouring farms. A wide variety of requirements can be met thanks to the different chassis options. The Pantera focuses on increasing work rates as well as reducing the work load on the driver.

Product overview

Your benefits at a glance

• High tank capacity and wide boom widths at a working speed of up to 30 km/h
• lightweight design, large tyre diameters and optimum weight distribution
• Compact design and minimal turning circle for high efficiency in smaller fields
• ultra-modern chassis and cab technology as well as user-friendly operation
• hydraulic track width adjustment and a wide variety of booms for a wide area of application
• low centre of gravity and stable running gear with automatic slope compensation

Pantera 7004 and Pantera 7004-W – Intelligent chassis management

The advantages of the chassis with independent wheel suspension with slope compensation:

• Independent suspension with perfect contour following
• Comfortable and safe driving characteristics in any situation thanks to adaptive chassis control
• Hydro-pneumatic suspension system with level regulation
• Super-robust frame
• Reliable hydraulic system – no air regulation
• Stepless track width adjustment
• High ground clearance
• Headland management for steering and boom functions
• Stress relief for the driver and gentle boom treatment
• Offset track driving for maximum soil protection
• Safe driving on slopes via the automatic slope compensation

• Connection to the main frame
• Independent trailing arm suspension
• Wheel motor with disc brakes and drive hubs

Offset track driving protects plants and soil

The soil-conserving function of the offset track driving, in which, for example, the front wheels can be set at the minimum track width and the rear wheels at maximum, ensures that the soil is travelled over just once. As a result, especially in unfavourable soil conditions, the soil is not smeared as much and young plants suffer hardly any damage. In contrast to dog-leg steering, the machine is always aligned to the direction of travel.

Pantera 7004 – The optimum chassis for all requirements

The new running gear with independent trailing arm suspension is of a unique design. The hydro-pneumatic suspension is adaptive, whereby the characteristics of the running gear are tailored to suit the driving situation. This intelligent control provides the best driving stability and maximum driving comfort combined with a simple and weight-reduced design in comparison with a conventional independent suspension. In addition, the system prevents any rocking when the tank is not completely full which enables high driving speeds, even on poor quality roads.

Hydraulic track width adjustment

Hydraulic track width adjustment, with a standard track width from 2.00 m to 2.75 m, is standard equipment. The Pantera-W, with track widths from 2.25 m to 3.00 m, is also available. The ground clearance in both machines is approximately 1.30 m, which means that tall crops can be driven through without damage.
