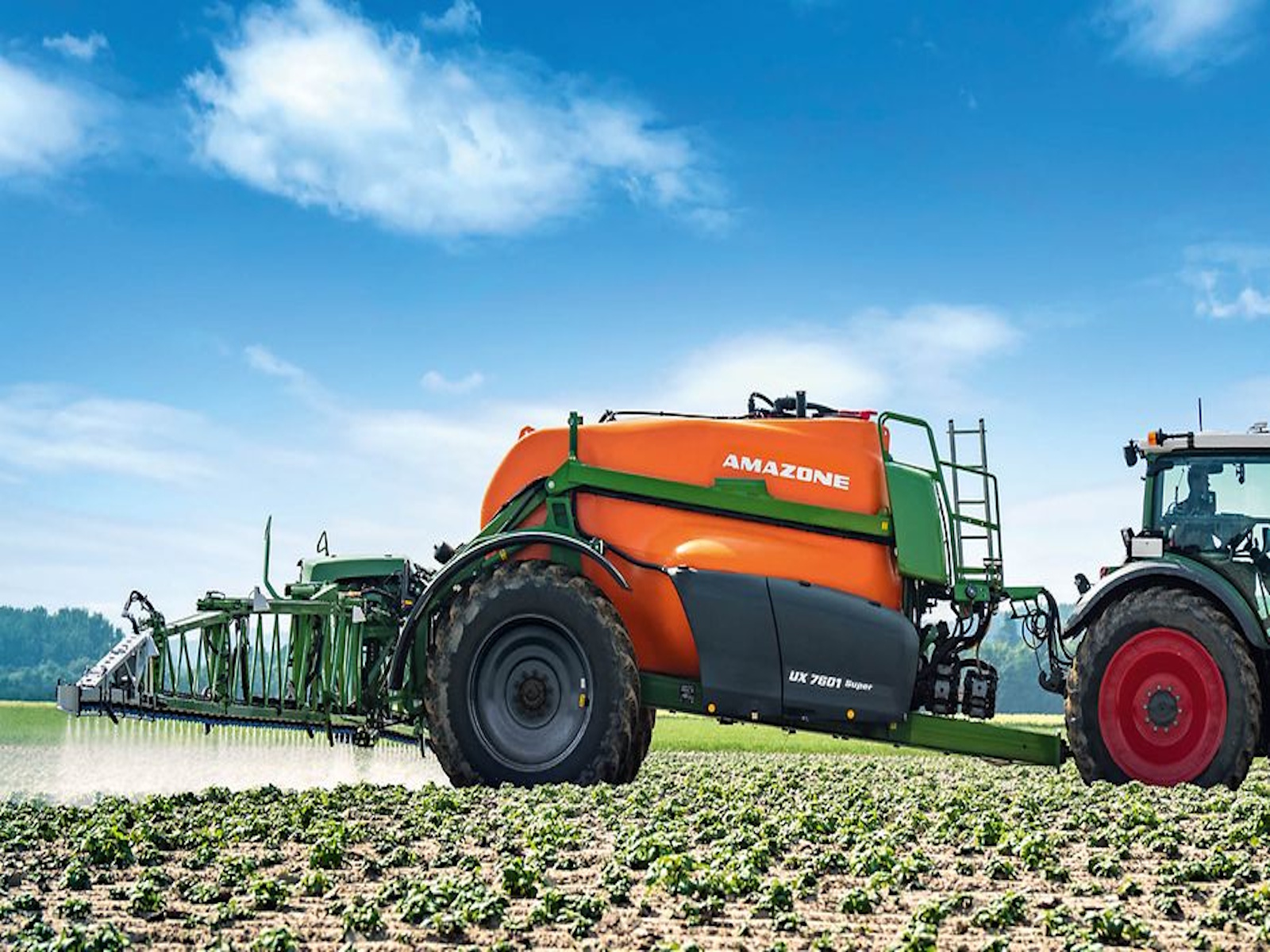

2026 Amazone UX 7601 Super

UX Super trailed sprayer

The UX Super trailed sprayer with tank capacities from 4,200 l to 11,200 l is distinguished by its extremely user-friendly operating concept. The Super-L2 and Super-L3 booms are available in widths from 21 to 48 m and stand out on account of their first-class boom guidance. Thanks to the level of high-performance equipment offered, the UX Super trailed sprayer ensures maximum efficiency at an unprecedented output.

Product overview

Your benefits at a glance

Precise!
Precise and resource-saving plant protection treatment with part-width section control or individual nozzle control for minimal overlapping in wedge-shaped fields, uniform application on bends, band spraying or small-area spot application. DistanceControl automatic boom guidance and ContourControl with SwingStop or SwingStop plus prevent over-application and under-application by ensuring an extremely smooth boom ride, even in difficult terrain and at high application speeds.

User-friendly!
The SmartCenter operator station with a high-capacity induction bowl and 7-way pressure tap or touch terminal for intuitive and safe
operation. Automatic cleaning programmes for perfect cleaning results under all conditions.

High performance!
High-capacity, self-priming and low-maintenance piston diaphragm pumps with a total delivery capacity of up to 700 l/min guarantee minimal filling times and also enable high application rates of up to 400 l/min at high spray pressures. Both the DUS and DUS pro pressure recirculation systems guarantee reliable circulation and an even application of the spray agent across the entire boom width from the very first metre.

The UX Super concept

Become a master of plant protection with the UX Super from AMAZONE

As much as necessary, as little as possible. Weighing up the benefits and costs of chemical plant protection from an ecological and economic perspective is the basis for economic success in agriculture and the sustainable production of high-quality food.

In order to meet the demands of this challenging balancing act, the utmost precision is required in the application of plant protection agents. This reduces the quantities used, prevents drift and secures yields.

The technical solutions offered by the UX Super from AMAZONE bring precision farming to your field. Whether individual nozzle control, band application or spot spraying, active boom guidance or direct injection, the UX Super enables you to manage your crops with maximum precision, maximum efficiency and maximum comfort – for good yields and high profitability.

The UX Super concept

High-output precision to meet every agricultural challenge

• DUS and DUS pro pressure recirculation systems for continuous circulation of the spray agent.
• 50 cm part-width sections, 25 cm nozzle spacing and optimum nozzle choice thanks to electric individual nozzle control AmaSwitch plus and AmaSelect.
•  A low transport height and compact transport dimensions are provided by an innovative tank and boom design.
• SmartCenter: tailored operating solutions – from the intuitively operated Standard-Pack to the Comfort-Pack plus with a pressure-sensitive touch screen.
• Light, compact, easily manoeuvrable – compact design and axle pivot steering with a steering angle of up to 28°.
• ContourControl active boom guidance for optimum horizontal boom guidance
• SwingStop for active vibration damping to reduce horizontal boom movements

The right UX Super for any farm

Overview of the different models

The types

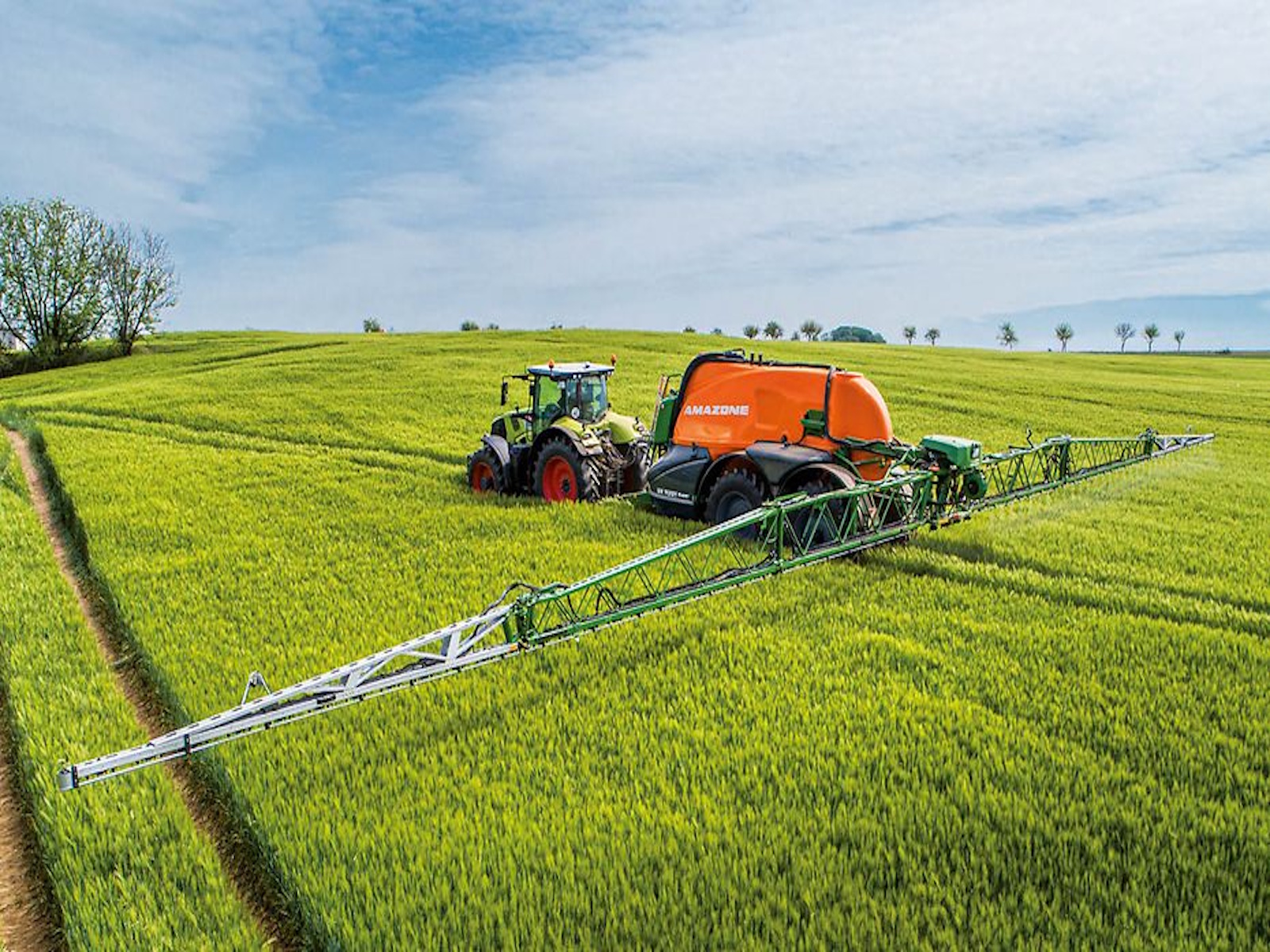

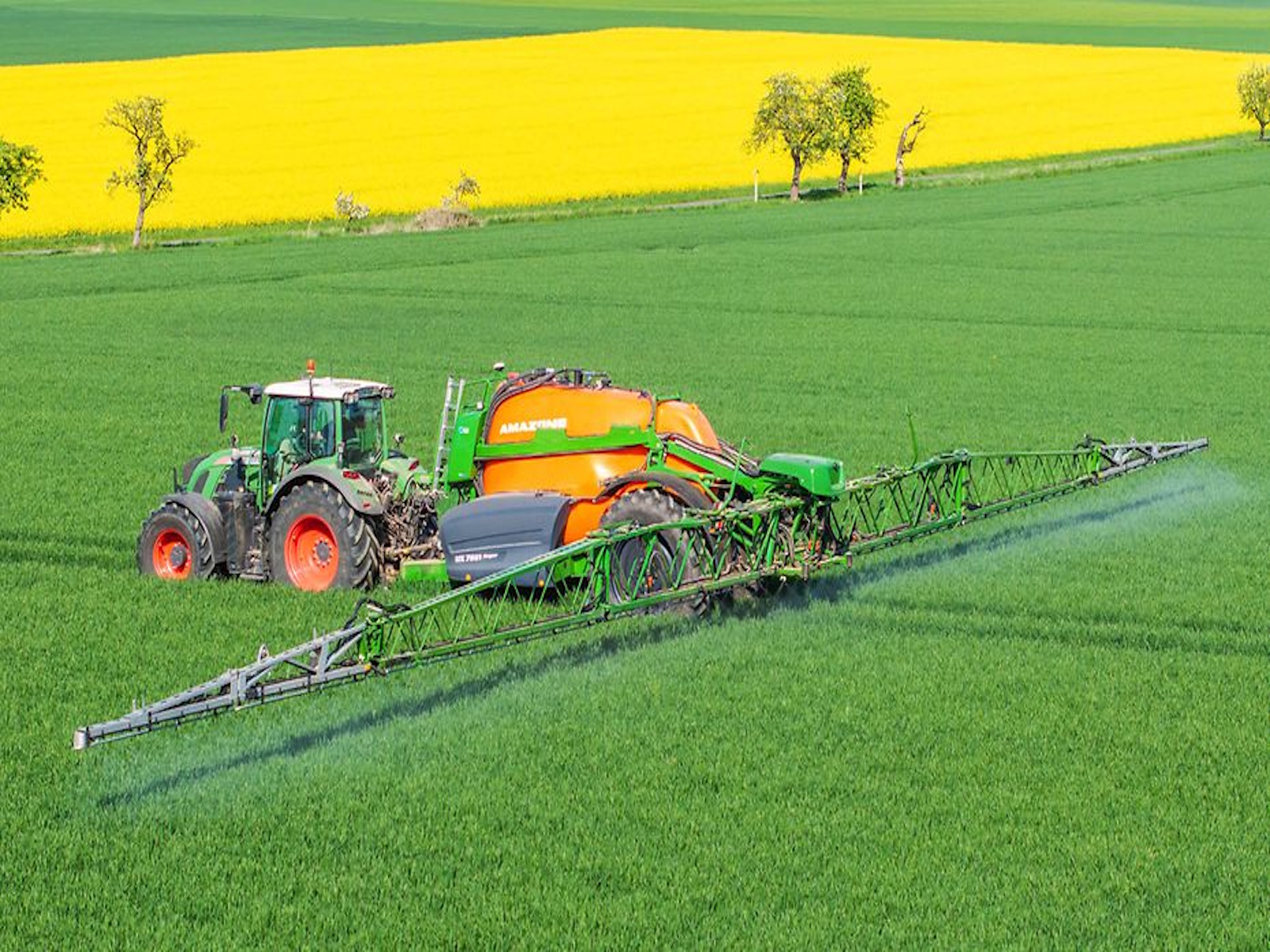

The UX Super trailed sprayers from AMAZONE are extremely precise crop protection sprayers with a wide range of different tank capacities. Designed for challenging operating conditions and high area coverage, spraying can be carried out with the UX Super with working widths up to 48 m. The easy handling and adjustment mean that the UX Super is a crop protection sprayer which offers the highest comfort.

The features at a glance

• Tank capacities from 4,200 l to 11,200 l
• Working widths up to 48 m
• Operating speeds up to 18 km/h
• Spraying heights from 0.50 to 2.50 m
• Up to 0.82 m ground clearance

UX 7601 Super and UX 8601 Super

UX Super, single axle, with a tank capacity of 7,600 litres or 8,600 litres

Advantages of the single axle UX Super with a tank capacity of 7,600 litres or 8,600 litres:

• Maximum capacity on one axle
• Very low centre of gravity of the sprayer

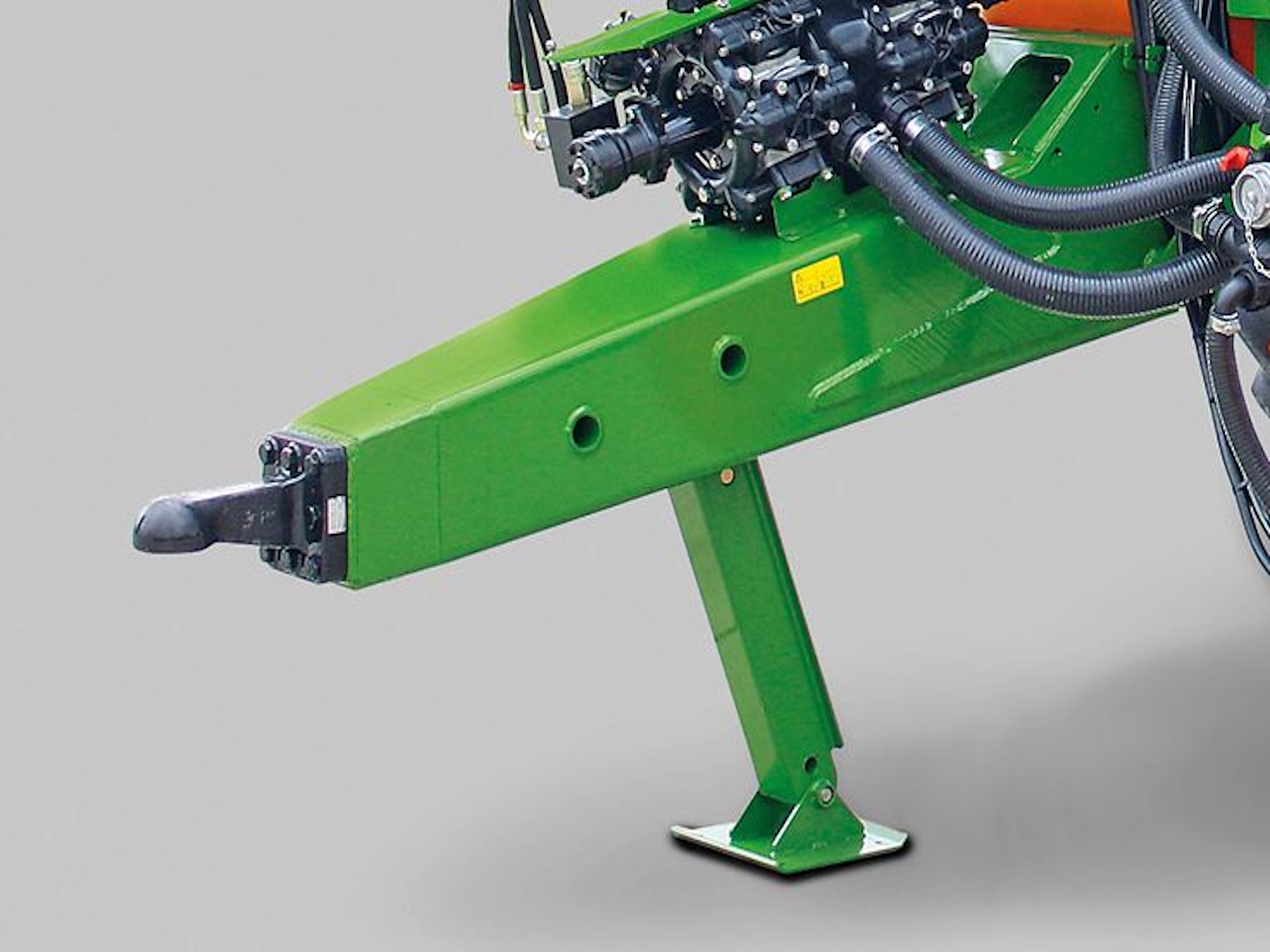

Drawbar and frame in one piece

The drawbar and frame are constructed as an integrated unit from high-tensile steel. This construction method provides optimum weight distribution and an extremely compact sprayer design.

Hydraulic parking jack
The height-adjustable parking jack integrated in the frame makes coupling to the tractor quick and easy with its convenient hydraulic height adjustment.

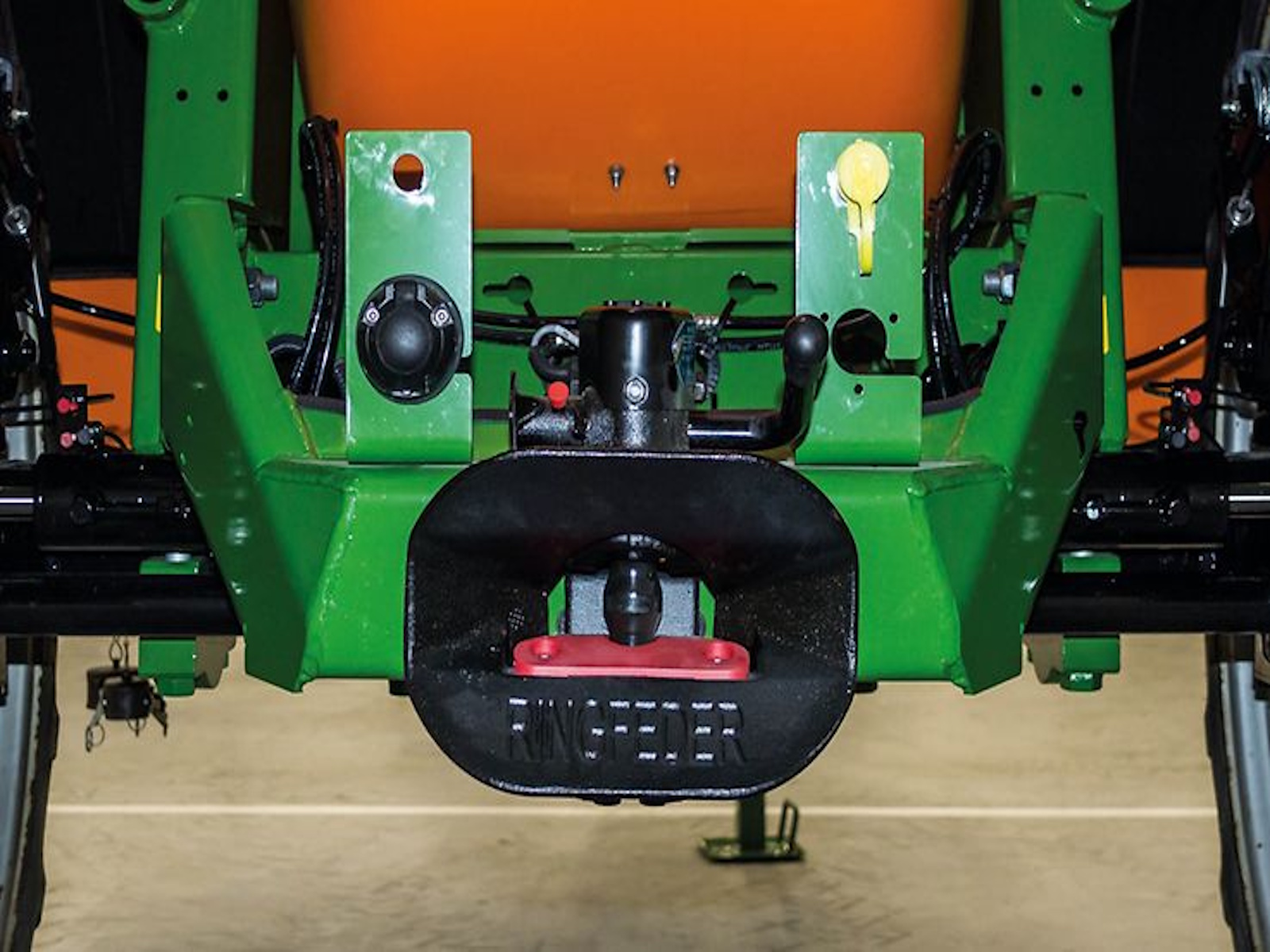

• Lower mounted hitch drawbar with K80 ball coupling and hydraulic parking jack

Unsuspended axle

The unsuspended axle supplied as standard is attractively priced and acceptable for many applications. It is ideal for farms which have short distances from the farmyard to the field and therefore spend little time on the road.

Passively-suspended axle

The passively-suspended axle is characterised by a perceptibly smoother machine position. In particular, it makes driving on the road more comfortable. Furthermore, undulations on the field are compensated for more effectively.

Actively-suspended axle

The actively-suspended axle provides the perfect suspension on the machine. It is impressive on the road as a result of its extremely smooth handling characteristics. This suspension is particularly suitable for farms which pay special attention to the protection of their machines.

Always remain on track!

Steering systems for the single axle UX Super models

AutoTrail axle steering
The optional AutoTrail axle steering provides the driver with the utmost comfort and ensures an especially smooth boom ride and high stability. The track-following capability, particularly when in the reversing position, is outstanding. This steering of the axle is also possible in the folded-in position.

“When the wheels are turned in the field, hardly any steering forces are transferred to the booms. Therefore the steering is continuously active in the field – even when on a straight run. Then if the tractor steers, the wheels of the sprayer are immediately also steered. How smoothly this happens we were able to see during operation. It didn’t matter whether we drove fast or slowly, nothing wobbled on the boom when turning.

Clever AutoTrail steering

With steering angles of 28°, the steering axles also negotiate tight bends with ease.

AutoTrail steering ensures an intelligent, track-true steering behaviour and can be easily calibrated for any tractor type. The AutoTrail steering systems can be activated at any time and can be oversteered using manual readjustment on slopes. Especially helpful in narrow field entrances is, with the Auto-Trail steering, the ability to activate the steering even with the booms folded.

Slope compensation for AutoTrail steering

• Slippage downhill with the slope compensation deactivated
• Activated slope compensation of the AutoTrail steering

AutoTrail steering on the UX Super is fitted with fully automatic slope compensation as standard. As the steering angle, depending on severity of the terrain, has to be possibly adjusted, the intensity of the setting can be altered at any time via the joystick.
