2026 Amazone UX 4201 Super

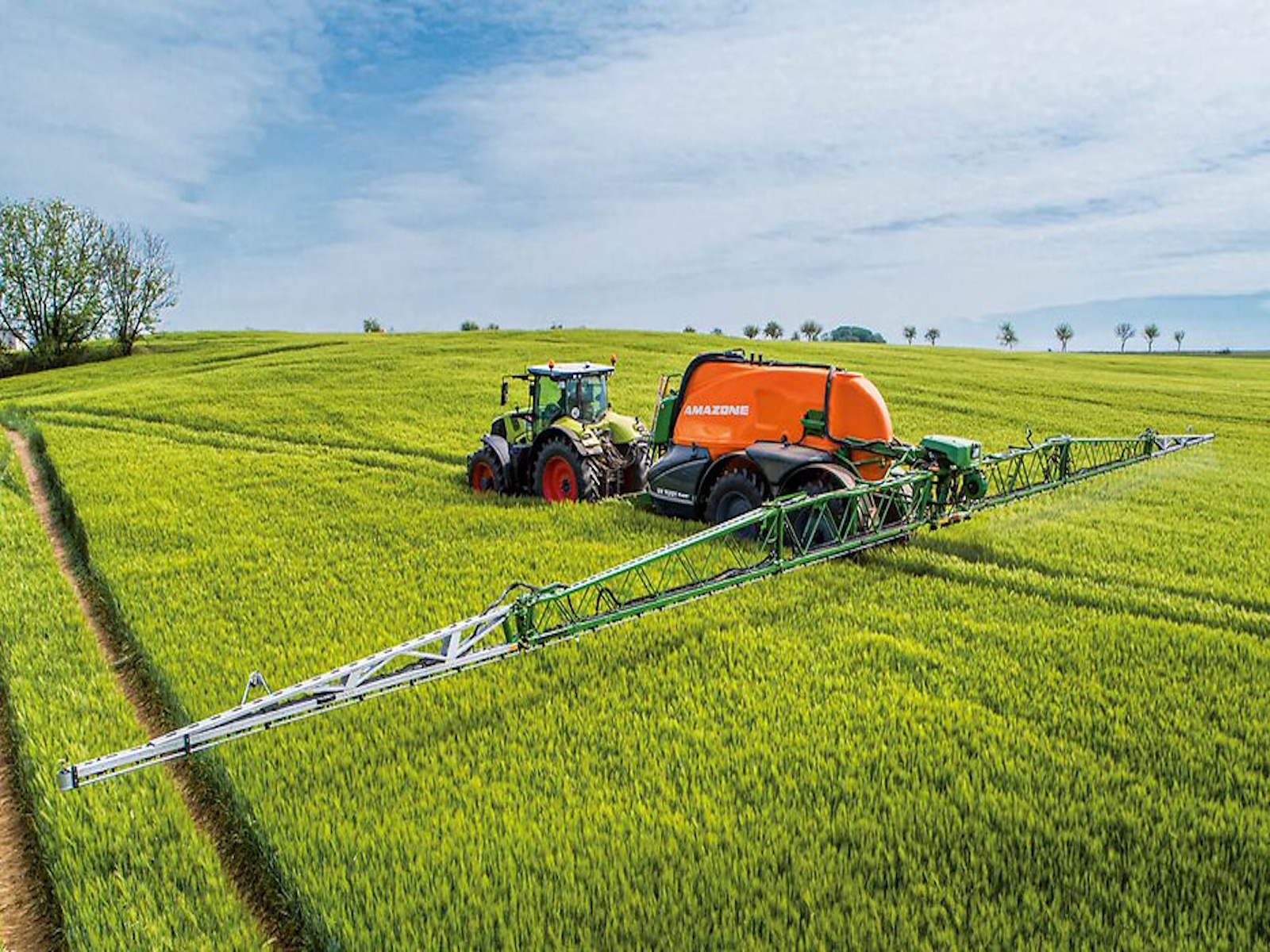

UX Super trailed sprayer

The UX Super trailed sprayer with tank capacities from 4,200 l to 11,200 l is distinguished by its extremely user-friendly operating concept. The Super-L2 and Super-L3 booms are available in widths from 21 to 48 m and stand out on account of their first-class boom guidance. Thanks to the level of high-performance equipment offered, the UX Super trailed sprayer ensures maximum efficiency at an unprecedented output.

Product overview

Your benefits at a glance

Precise!
Precise and resource-saving plant protection treatment with part-width section control or individual nozzle control for minimal overlapping in wedge-shaped fields, uniform application on bends, band spraying or small-area spot application. DistanceControl automatic boom guidance and ContourControl with SwingStop or SwingStop plus prevent over-application and under-application by ensuring an extremely smooth boom ride, even in difficult terrain and at high application speeds.

User-friendly!
The SmartCenter operator station with a high-capacity induction bowl and 7-way pressure tap or touch terminal for intuitive and safe
operation. Automatic cleaning programmes for perfect cleaning results under all conditions.

High performance!
High-capacity, self-priming and low-maintenance piston diaphragm pumps with a total delivery capacity of up to 700 l/min guarantee minimal filling times and also enable high application rates of up to 400 l/min at high spray pressures. Both the DUS and DUS pro pressure recirculation systems guarantee reliable circulation and an even application of the spray agent across the entire boom width from the very first metre.

The UX Super concept

Become a master of plant protection with the UX Super from AMAZONE

As much as necessary, as little as possible. Weighing up the benefits and costs of chemical plant protection from an ecological and economic perspective is the basis for economic success in agriculture and the sustainable production of high-quality food.

In order to meet the demands of this challenging balancing act, the utmost precision is required in the application of plant protection agents. This reduces the quantities used, prevents drift and secures yields.

The technical solutions offered by the UX Super from AMAZONE bring precision farming to your field. Whether individual nozzle control, band application or spot spraying, active boom guidance or direct injection, the UX Super enables you to manage your crops with maximum precision, maximum efficiency and maximum comfort – for good yields and high profitability.

The UX Super concept

High-output precision to meet every agricultural challenge

• DUS and DUS pro pressure recirculation systems for continuous circulation of the spray agent.
• 50 cm part-width sections, 25 cm nozzle spacing and optimum nozzle choice thanks to electric individual nozzle control AmaSwitch plus and AmaSelect.
•  A low transport height and compact transport dimensions are provided by an innovative tank and boom design.
• SmartCenter: tailored operating solutions – from the intuitively operated Standard-Pack to the Comfort-Pack plus with a pressure-sensitive touch screen.
•  Light, compact, easily manoeuvrable – compact design and axle pivot steering with a steering angle of up to 28°.
• ContourControl active boom guidance for optimum horizontal boom guidance
• SwingStop for active vibration damping to reduce horizontal boom movements

Product models

The right UX Super for any farm

Overview of the different models

The types
The UX Super trailed sprayers from AMAZONE are extremely precise crop protection sprayers with a wide range of different tank capacities. Designed for challenging operating conditions and high area coverage, spraying can be carried out with the UX Super with working widths up to 48 m. The easy handling and adjustment mean that the UX Super is a crop protection sprayer which offers the highest comfort.

The features at a glance

• Tank capacities from 4,200 l to 11,200 l
• Working widths up to 48 m
• Operating speeds up to 18 km/h
• Spraying heights from 0.50 to 2.50 m
• Up to 0.82 m ground clearance

UX 4201 Super, UX 5201 Super and UX 6201 Super

UX Super, single axle, up to a tank capacity of 6,200 litres

Advantages of the single axle UX Super with a tank capacity of up to 6,200 litres:

• Super-compact design for high manoeuvrability and clarity during use
• Top mounting with a straight drawbar or lower mounting with a hitch drawbar
• Low nett weight for soil protection

Frame and drawbar for UX 4201, UX 5201 and UX 6201

The wide profile steel frame, made from torsion resistant steel, compact tank design and the well-engineered boom technology provide the utmost in robustness.

Drawbar damping – For protection of the booms

The drawbars of the UX 4201 to UX 6201 and the UX 11201 are provided with an important design element, the drawbar shock absorbance system. Minimising the to and fro movements between frame and drawbar it also protects the booms and prevents any rocking movement of the tractor keeping the operator comfortable.

Trailer tow hitch

The UX trailed sprayer allows fitting of a drawbar at the rear. The max. towing capacity is 12 t.

Linking to the tractor – Just as you like it!

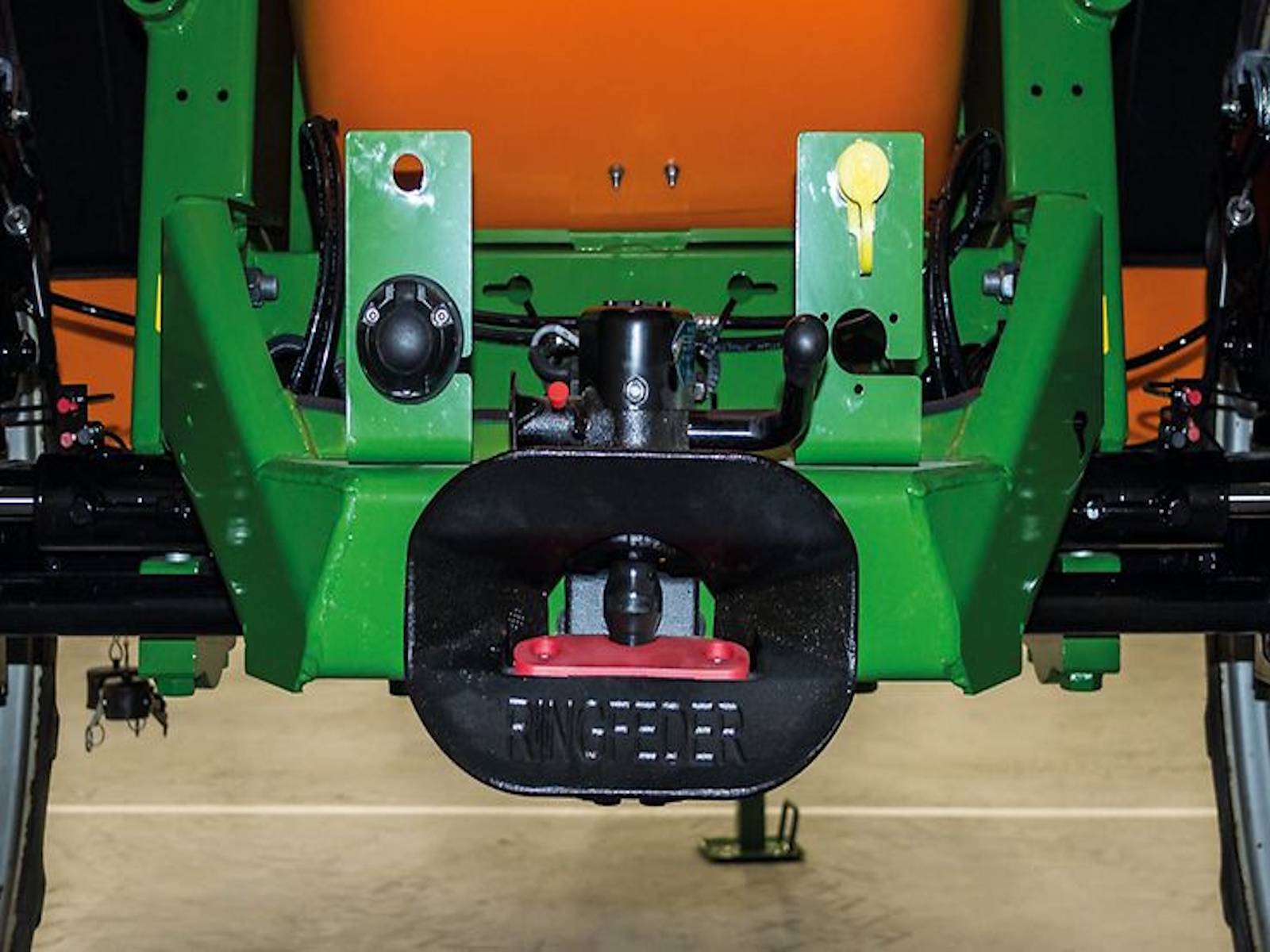

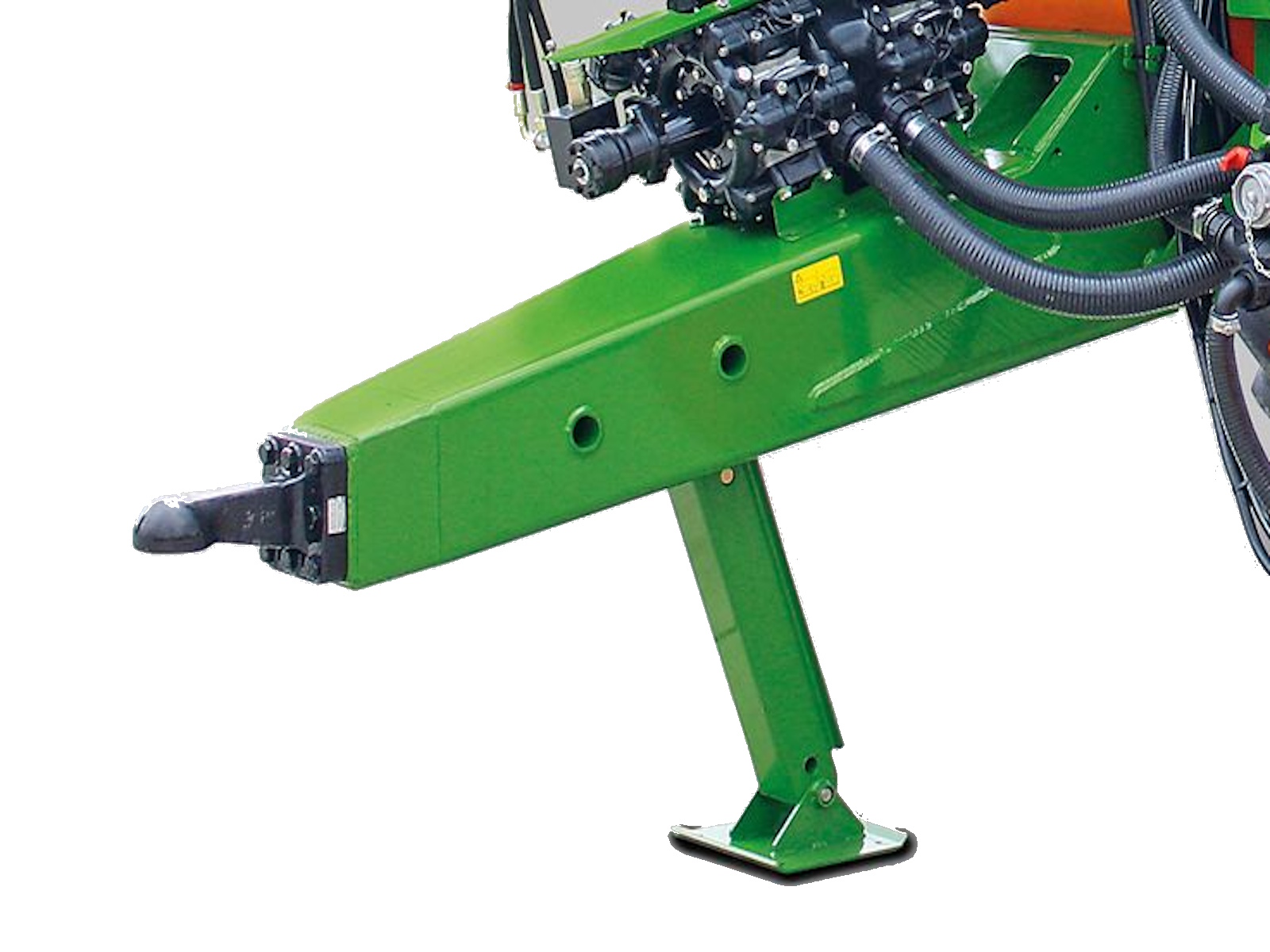

No matter whether using a rigid hitch drawbar with ball coupling or the classic towing eye, AMAZONE always offers the right solution for your tractor. Choose between top hitch or lower mounting, towing eyes with a diameter of 40 mm or 50 mm or the K80 ball coupling.

Hydraulic parking jack

A height adjustable jack Is integrated in the frame and with its convenient optional hydraulic height adjustment makes coupling to the tractor quick and easy.

A wide variety of axles for the UX 4201, UX 5201 and UX 6201

The wide variety of axles offer the right solution for every requirement.

The benefits:

• Tyre sizes up to 520/85 R46 (2.05 m diameter) are possible
• Ground clearance up to 82 cm

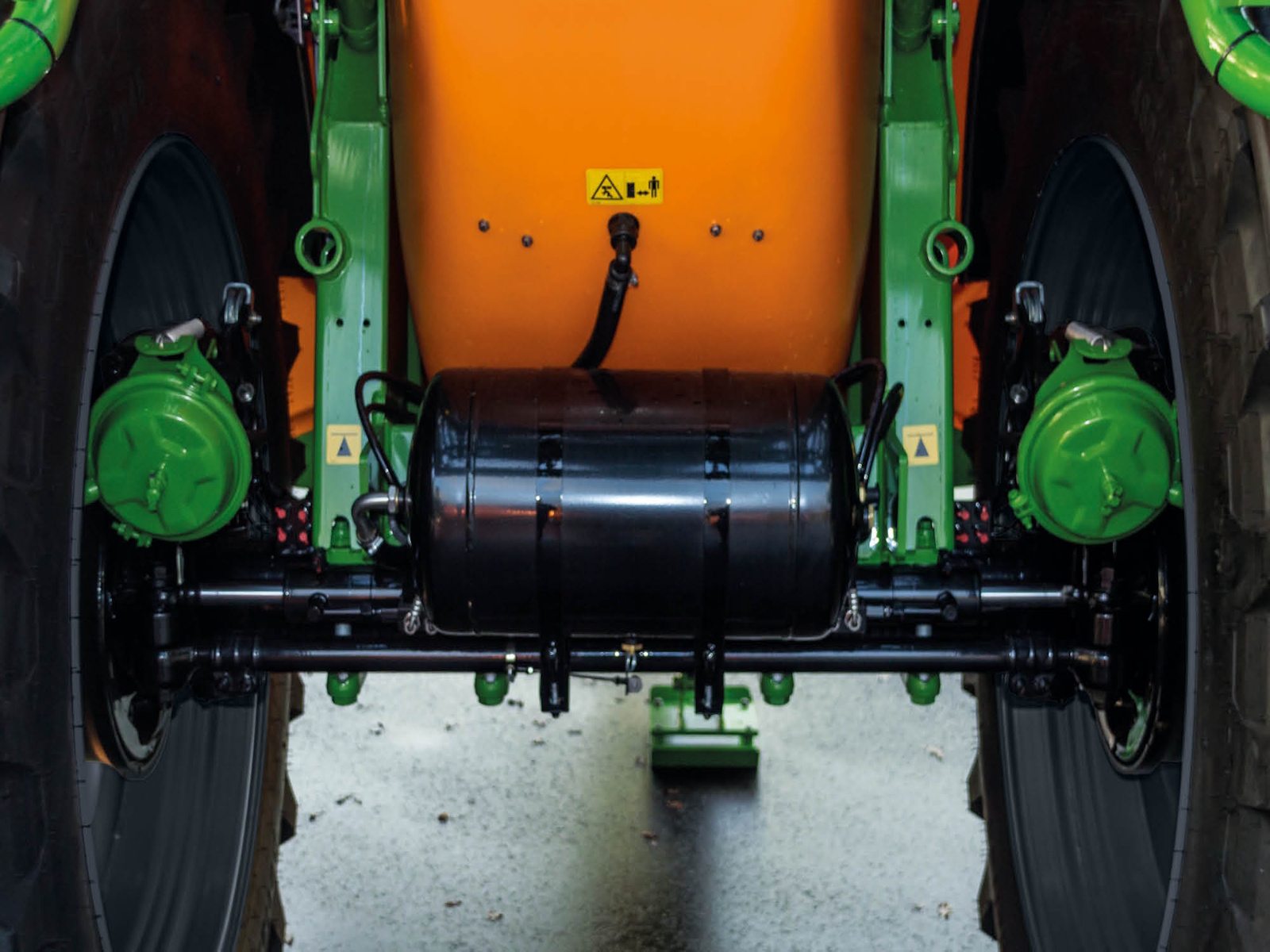

• Permissible speeds of up to 60 km/h with the ALB system (automatic load-dependent brake valve)

The options:

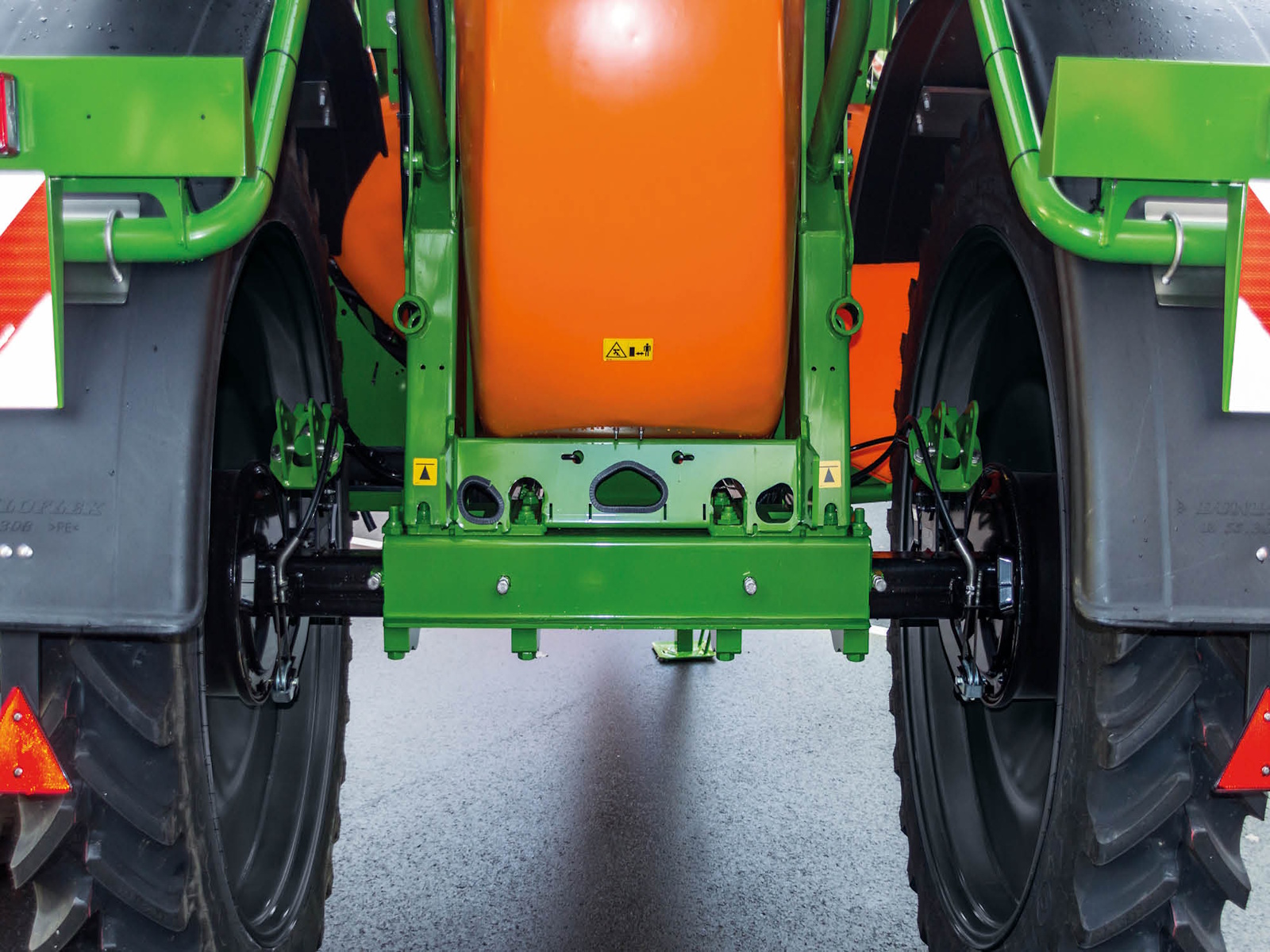

• Fixed axles with track widths from 1.50 to 2.25 m – two track widths are possible by turning the wheels round.

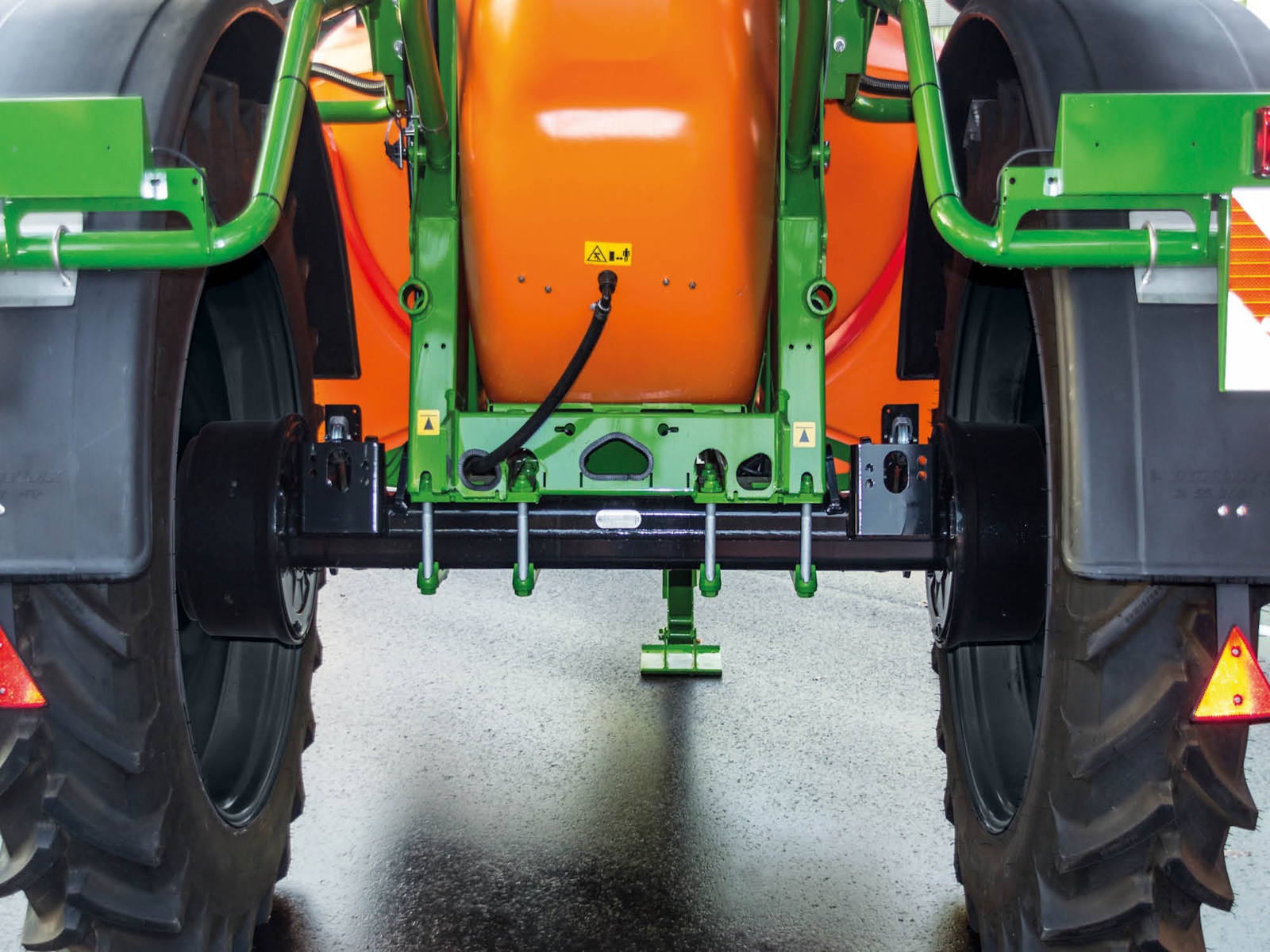

• Adjustable axle with stepless track width adjustment from 1.50 m to 2.25 m for the UX 4201 Super

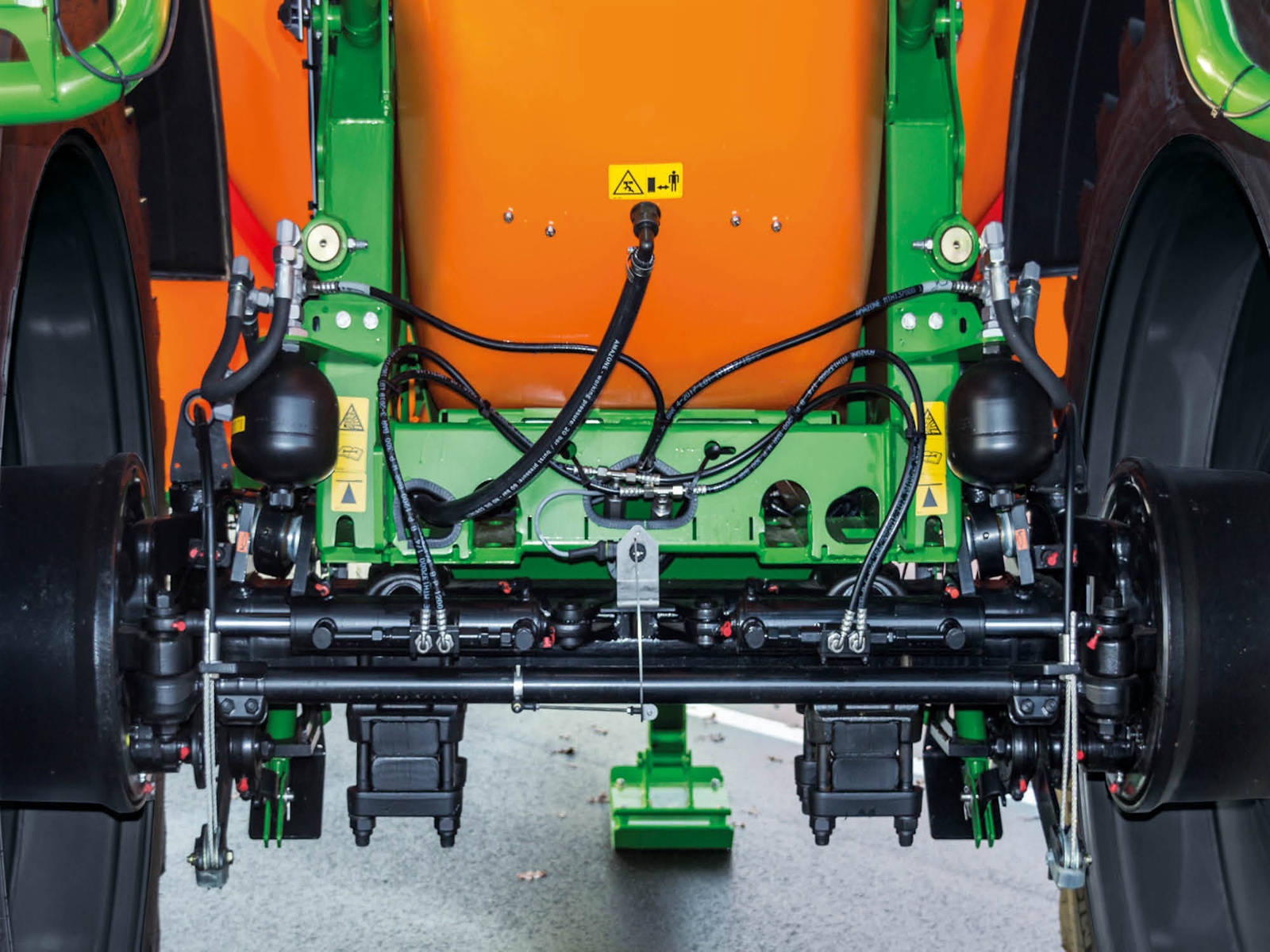

• Hydro-pneumatic axle suspension with patented roll stabilisation for the UX 4201 Super and the UX 5201 Super
• AutoTrail axle pivot steering for precise automatic trailing tracking
