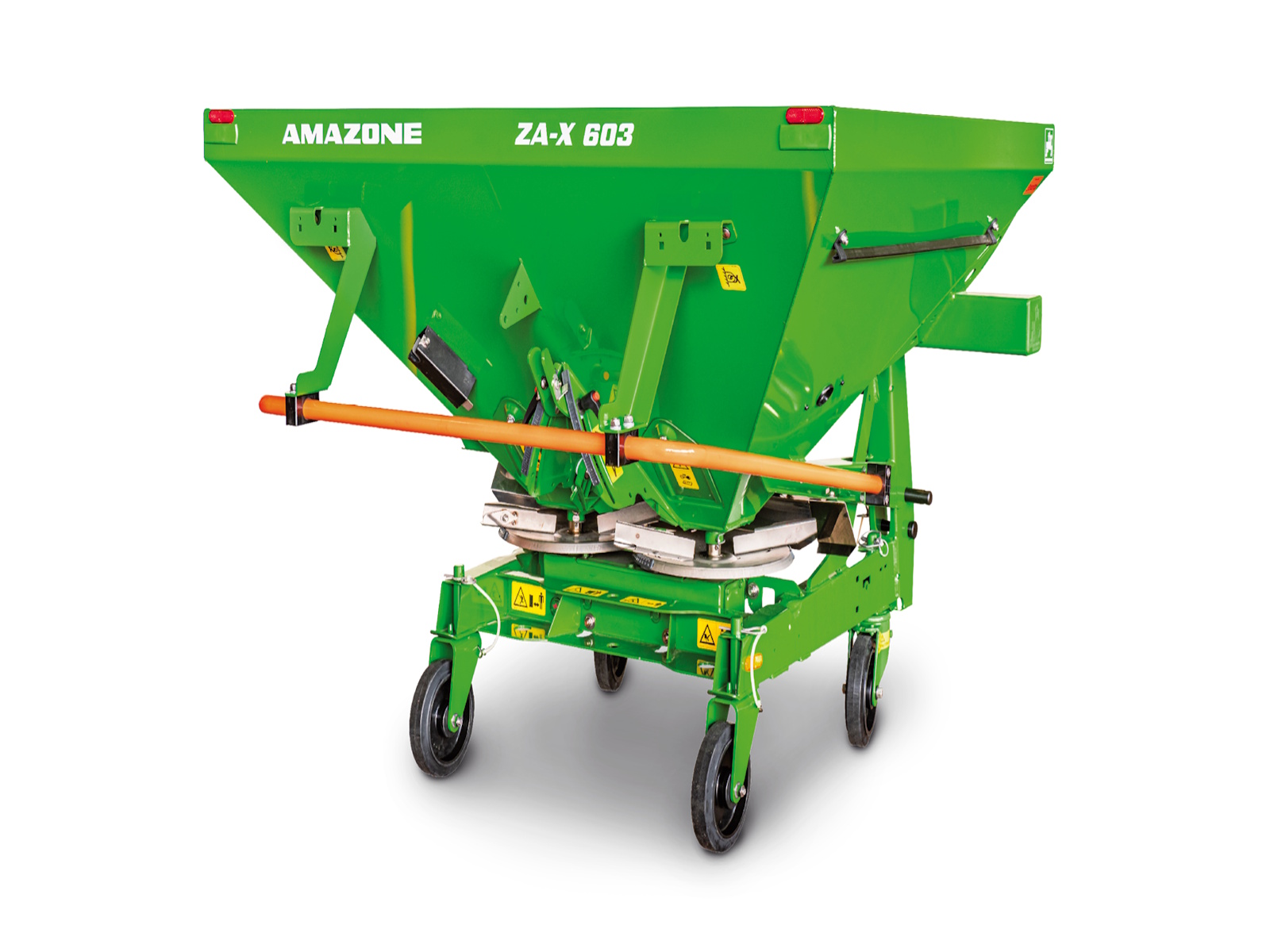

2026 Amazone ZA-X 603

ZA-X mounted spreader

AMAZONE ZA-X fertiliser spreaders to meet the demands of end-users and environmental protection: precise, reliable, reasonably priced.

AMAZONE has focused the development of fertilisation on optimising plant nutrition. The precise placement of nutrients is a primary concern in practical fertilisation. AMAZONE offers you a fertiliser spreader range which complies with all European standards with regard to distribution accuracy and boundary spreading.

Product overview

Your benefits at a glance

• Double tipped hopper with optimum shape for continuous flow monitoring and more precision
• Fine-mesh filling sieves prevent problems when spreading and are easy to fold up and lock in position fcomfortable cleaning
• Complete spreading system made from stainless steel
• Convenience and reliability due to simple and easily accessible adjustment of spread rate and working width
• Double shutter system for an optimum rate setting and a quicker action for both opening and closing
• Row spreading attachment for optimum fertilisation in special crops

Many models, one range

ZA-X - the proven spreader with working widths of up to 18 m

Model: ZA-X 603
Working widths (m) with OmniaSet spreading discs: 10 – 18
Hopper capacity (l): 600 – 850 (up to 1,000 kg payload)
Extension options: with 1 x S 250

ZA-X with hydraulic shutter actuation

Simple, direct operation of the ZA-X mounted spreader

The ZA-X mounted spreader, with hydraulic shutter actuation, provides a simple option for independent actuation of the left- and right-hand on/off shutters via two double-acting hydraulic spool valves on the tractor.

The application rate shutters below the apertures can be manually adjusted via a setting lever on the left- and right-hand side.

The benefits:

• Individual hydraulic shutter control of each actuation via two double-acting spool valves
• A simple 3-way valve is also available if your tractor does not have sufficient spool valve connections.
• No operator terminal required

The twin hopper

Twin hopper means automatic monitoring. If one side empties more quickly than the other, it can be immediately checked whether a foreign object is blocking the opening or whether the levers are evenly positioned on the stops. The twin hopper design enables optimised steep hopper walls. Unlike single tip hoppers, these guarantee an extremely even fertiliser flow, even on slopes, with very little fertiliser left.
