2026 Amazone Catros 8003-2TX pro

Catros pro compact disc harrow

For slurry incorporation
With the pro-Pack for Catros, AMAZONE offers optimum and virtually loss-free spreading of organic nutrients, such as slurry or fermentation residues.}

For slurry incorporation

With the pro-Pack for Catros, AMAZONE offers optimum and virtually loss-free spreading of organic nutrients, such as slurry or fermentation residues.

Your benefits at a glance

• Specially sealed disc bearings
• Electric central lubrication system as an option
• Reinforced SW 600 pro cage roller as an option
• The Vogelsang slurry distributor and hoses are installed in the works by AMAZONE
• Optimum corrosion protection through powder coating

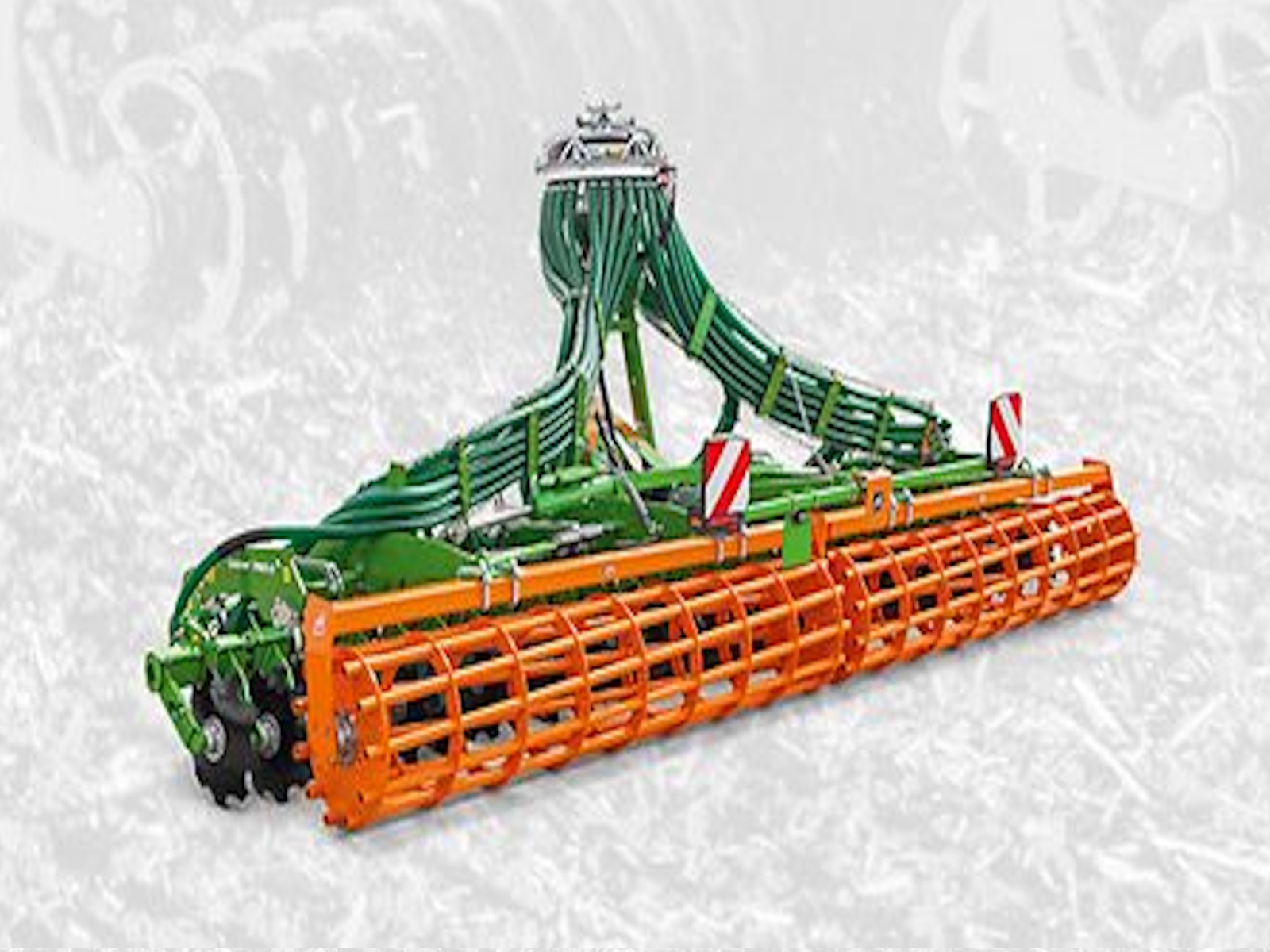

Catros TX pro

Folding trailed compact disc harrow with centre running gear for maximum work rates

pro-Pack and central lubrication

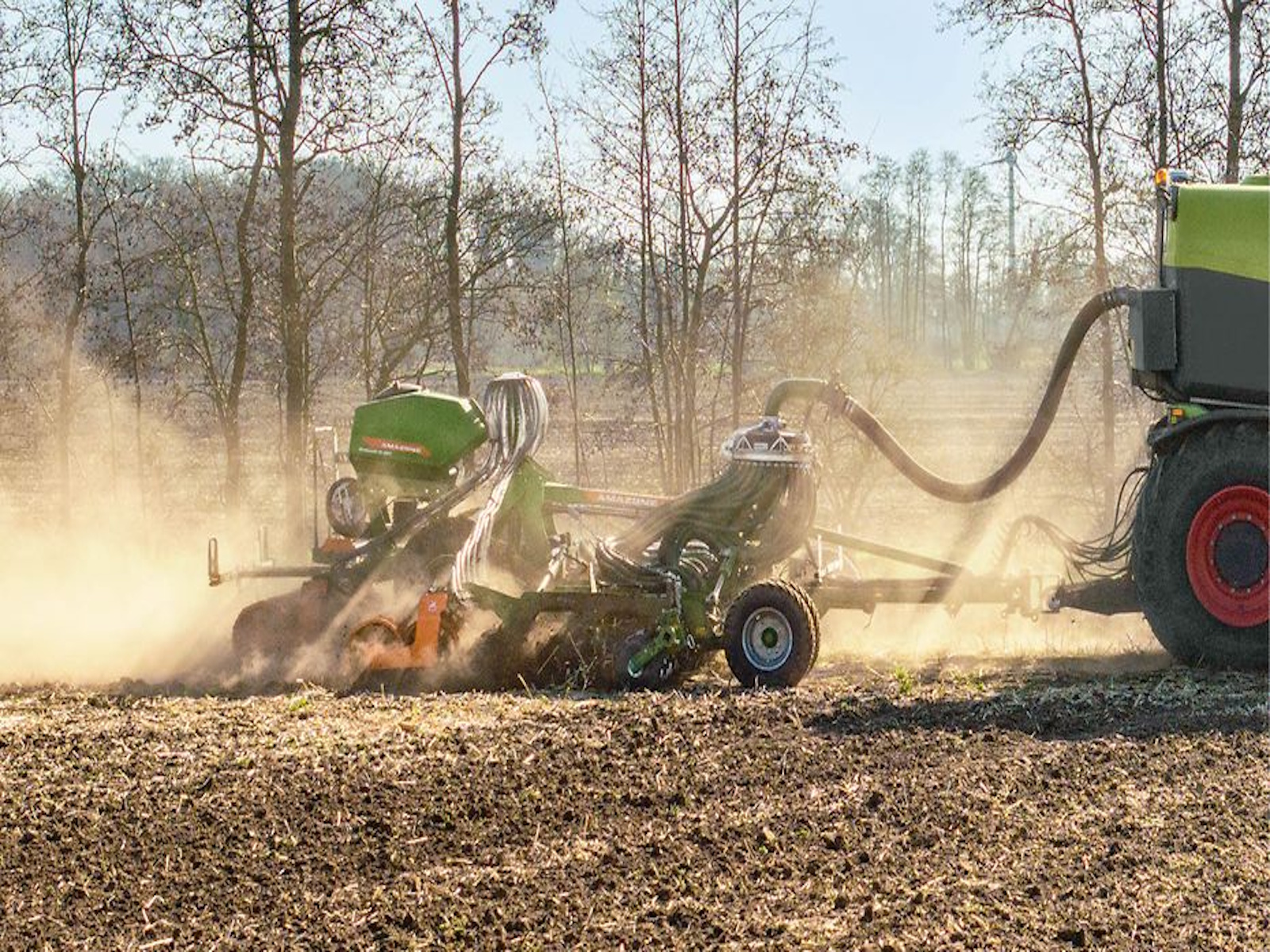

With the pro-Pack for Catros, AMAZONE offers optimum and virtually loss-free spreading of organic nutrients, such as slurry or fermentation residues. Initially, the ground is opened up by the first row of discs. By spreading behind the first disc, a strip of slurry is deposited into the opened-up groove which is then closed again by the second row of discs. This ensures the optimum application of the slurry with minimal nutrient losses. The following roller ensures an appropriate reconsolidation of the soil, or the optional double harrow promotes faster drying in spring.

The perfect incorporation of slurry into the soil with the Catros pro from AMAZONE ensures compliance with any legal regulations concerning slurry spreading.

Benefits of the Catros with pro-Pack

• Specially sealed disc bearings
• Electric central lubrication system as an option
• Reinforced SW 600 pro cage roller as an option
• The Vogelsang slurry distributor and hoses are installed in the works by AMAZONE
• Optimum corrosion protection through powder coating

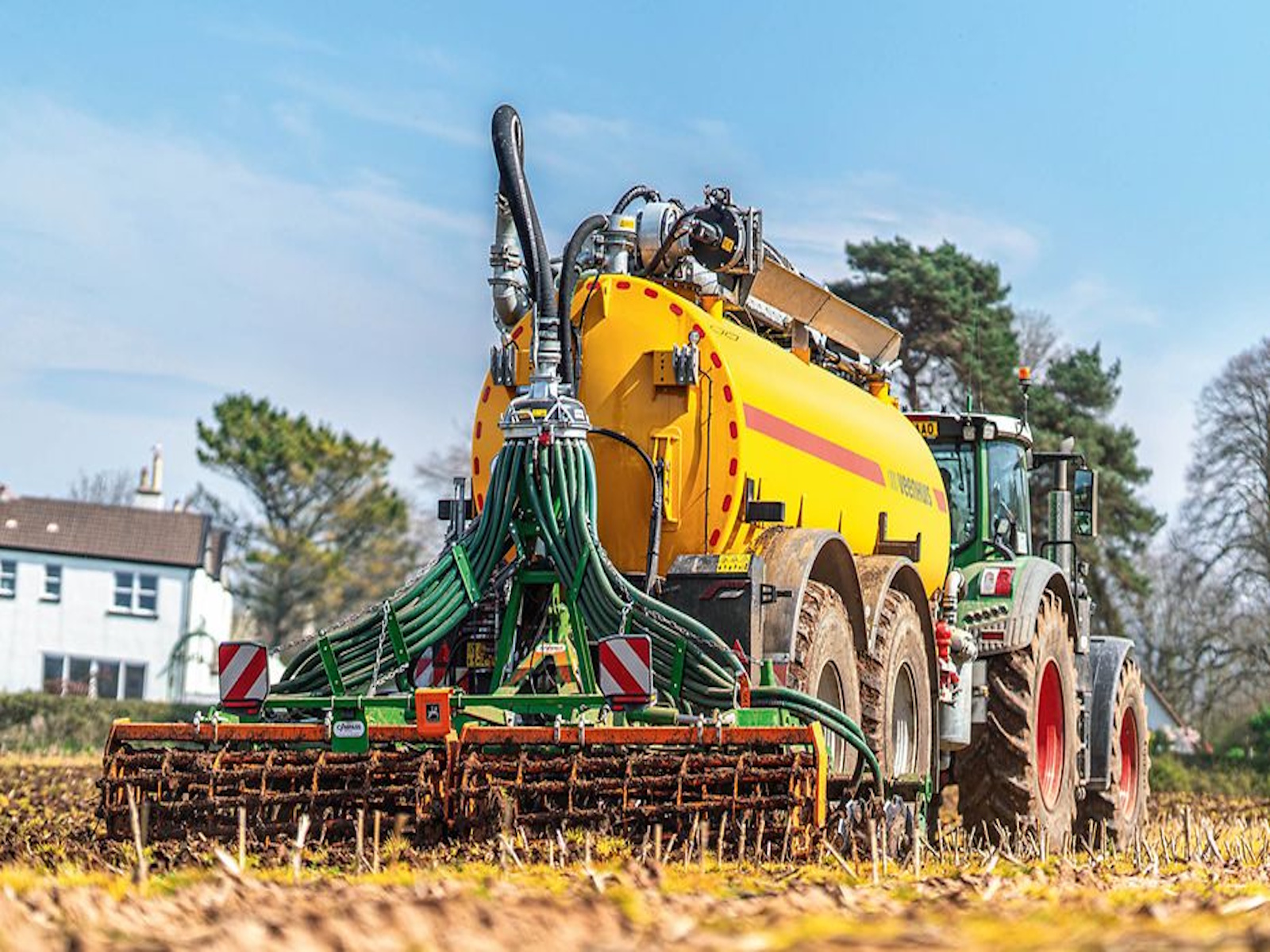

SynCult slurry distributor

The Catros pro can be combined with the Vogelsang SynCult DosiMat DMX slurry distributor. The system is characterised by high application rates of up to 10,000 l/min and a consistently high accuracy of distribution regardless of the flow rate. The adapter frame carries the distributor and the hoses for the slurry system are permanently mounted onto the first row of discs on the Catros. AMAZONE installs the slurry distributor and hoses in house.

Smart Frame System

Simple and uncomplicated setting of the working depth

• One-time alignment of the main frame, since the working depth is changed by swivelling the discs in the soil
• The first and second row of discs always work at the same depth
• Convenient for brief changes to the working depth, such as working deeper in tramlines or on the headland

Huge through-passage, always perfectly adapted to the working depth

• The distance between the discs and the main frame automatically increases the deeper you work. When the working depth is increased, the discs pivot away from both the frame and the rear roller.

Face seal – Reliability and comfort are the key

No lubrication ever again – thanks to the maintenance-free disc bearings
With no need to lubricate the disc bearings, this results in a significantly reduced overall maintenance time. The face seal has been used in AMAZONE tillage equipment for almost 25 years, and has, over this period, more than proven itself across every continent.

Advantages of the disc element

• Maintenance-free disc bearings with face seals and life-long lubrication
• Maintenance-free overload protection via rubber spring elements
• Individual disc suspension for optimised contour following and excellent through passage
• .2-row angular roller bearing
• 2 x roller bodies
• O-ring
• 2 x cast rings with face seal
• Face seal built into conical seats
• Gear oil filled housing
• Proven 2,000,000 times over!

Perfect – individually suspended discs

The elastic sprung rubber buffer blocks for suspending the discs, not only ensure optimum contour following, but also act as overload safety protection on each individual disc. The oversized rubber buffer blocks are maintenance-free.
