2027 Demco Rear Mount Sprayers: 500 & 600 Gallon 600 Gallon

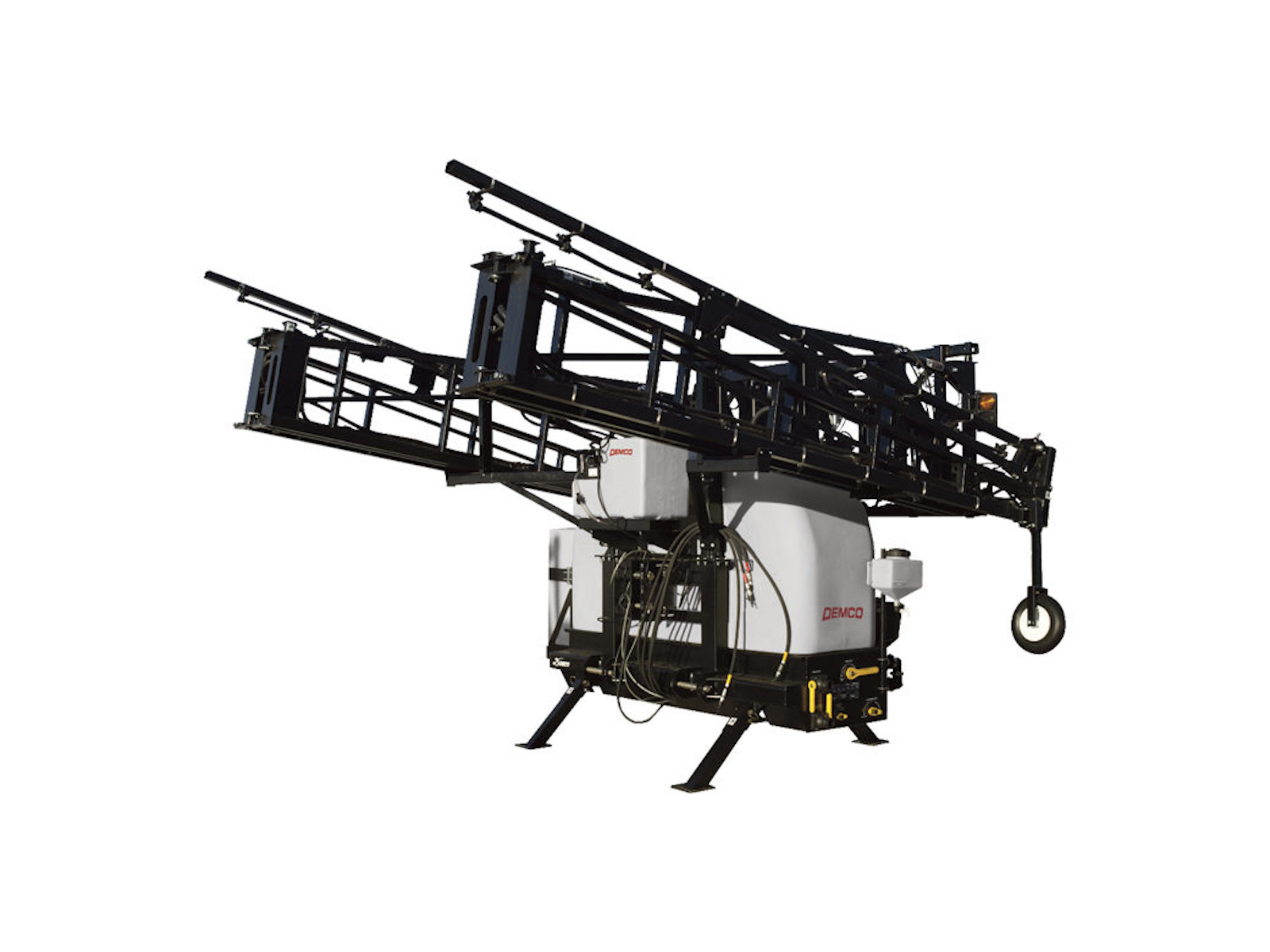

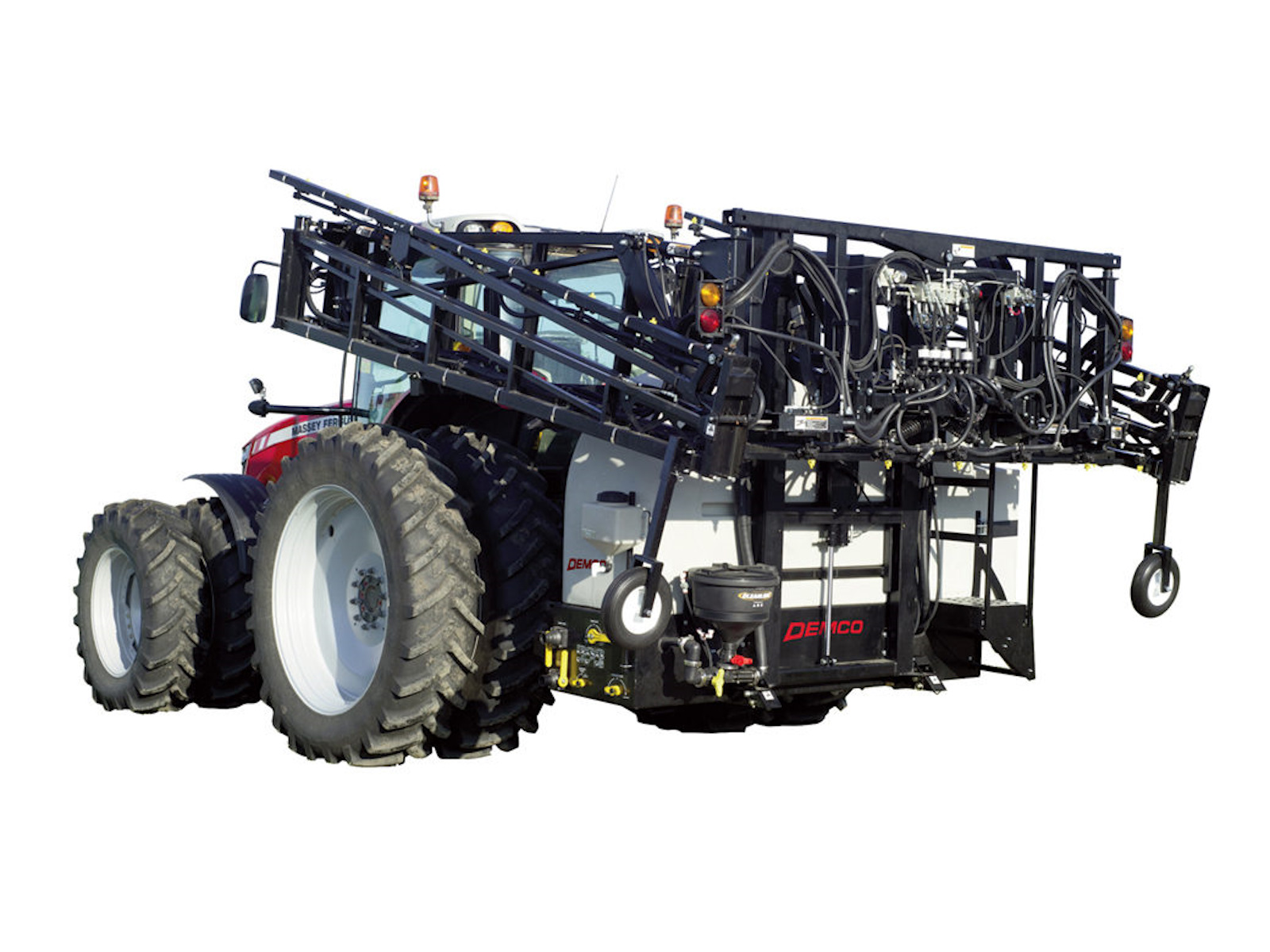

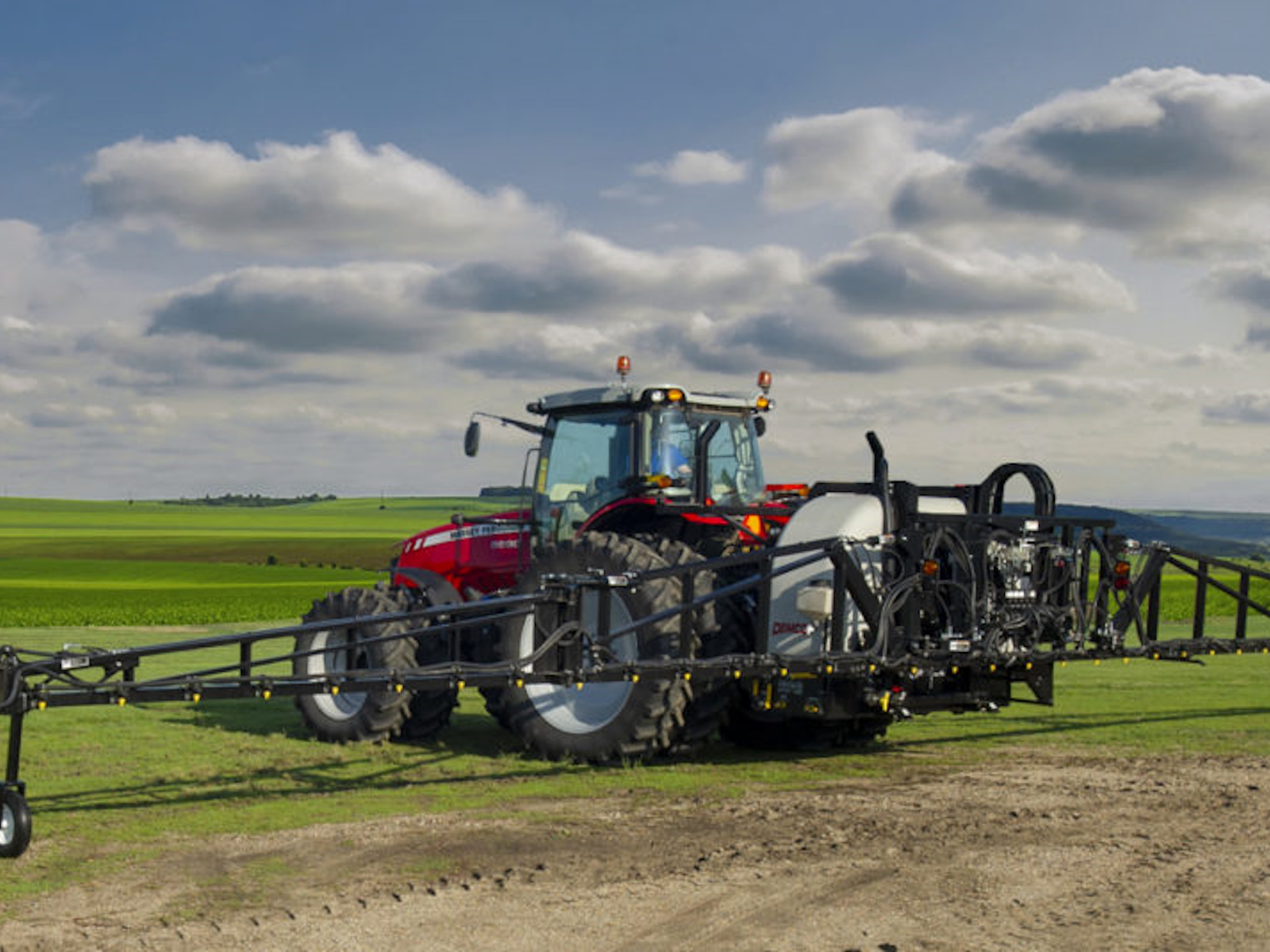

High Capacity 3-Point Sprayer

The new Demco 600 gallon rear-mounted sprayer is just the type of unique product you can expect from Demco to help meet the needs of your farming operation.

The design and placement of the tank allows this high-capacity 3-point sprayer to be mounted closer to the tractor. The tank has a sump for superior product clean-out and drainage. This sprayer is available with a 45', 60', 66’ or 80'/90’ hydraulic front folding boom.

Features May Include:

• 500 or 600 gallon tank with 16 inch fillwell, jet agitation, molded sight gauge, and large centered drainage sump.
• Category “3” or “4” rear mount brackets may be used with “Quick Attach” three point hookup.
• Large, convenient platform with safety rail and ladder for easy filling of the tank.
• Retractable, built-in ground stand for storage when empty.
• A clean water tank is conveniently mounted on the rear mount unit.
• Available with 45, 60, 66 or 80/90' front fold booms.

Options:

Frame

• 9416028    Frame with Charcoal 500 Gallon Tank
• 9416029    Frame with Yellow 500 Gallon Tank
• 9416030    Frame with Charcoal 600 Gallon Tank
• 9416031    Frame with Yellow 600 Gallon Tank

Pumps

• 9425068    Ace Hydraulic Pump (FMC150HYD304) (hose kit included)
• 9425067    Hypro Hydraulic Pump (C9314HM1) (hose kit included)


Plumbing / Pump Mount / Ball Valves

• 9425078    Raven® Flow Meter, Regulator, 3 Motorized Valves & Plumbing
• 9425081    Raven® Flow Meter, Regulator, 5 Motorized Valves & Plumbing
• 9425099    TeeJet® Regulator, Flo Meter, Harness, 3 Motor Valves for RM
• 9425100    TeeJet® Regulator, Flo Meter, Harness, 5 Motor Valves for RM

Controls

• 9425093    Raven® 450 Rate Controller
• 9425096    Raven® ECU
• 9425102    TeeJet® 845 w/GPS Speed


Boom without Plumbing Hydraulic Front Fold Boom

• 9488139    45' Hydraulic Front Fold Boom
• 9488140    60' Hydraulic Front Fold Boom
• 9488141    66' Hydraulic Front Fold Boom
• 9488142    60', 80/90' Combination Hydraulic Front Fold Boom (Tractor must be equipped with closed center hydraulic system.)

Front Fold Boom Accessories

• 9428118    TeeJet® Drip Free (27 Nozzles) for 45' Boom
• 9428121    TeeJet® Triple Drip Free (27 Nozzles) for 45' Boom
• 9428108    TeeJet® Drip Free (37 Nozzles) for 60' Boom
• 9428109    TeeJet® Triple Drip Free (37 Nozzles) for 60' Boom
• 9428120    TeeJet® Drip Free (40 Nozzles) for 66' Boom
• 9428123    TeeJet® Triple Drip Free (40 Nozzles) for 66' Boom
• 9428159    TeeJet® Drip Free (55 nozzles) for 60', 80/90' Hydraulic Front Fold Boom (5 section)
• 9428160    TeeJet® Triple Drip Free (55 nozzles) for 60', 80/90' Hydraulic Front Fold Boom (5 section)


45, 60, 66' Boom Accessories

• 9428170    Foam Marker Mounting Kit
• 9428167    33 Gallon Foam Marker with Charcoal Tank
• 9488013    Wheel Assisted Boom Tip Protectors


80/90' Boom Accessories

• 9428170    Foam Marker Mounting Kit
• 9428168    33 Gallon Foam Marker with Charcoal Tank
• 9428152    Hydraulic Glide Suspension System


Accessories

• 9428198    Chemical Eductor Vacuum Flow
• 9428199    55 Gallon Charcoal Tank and Mounting for Flusing
• 9428200    56 Gallon Yellow Tank and Mounting for Flushing
