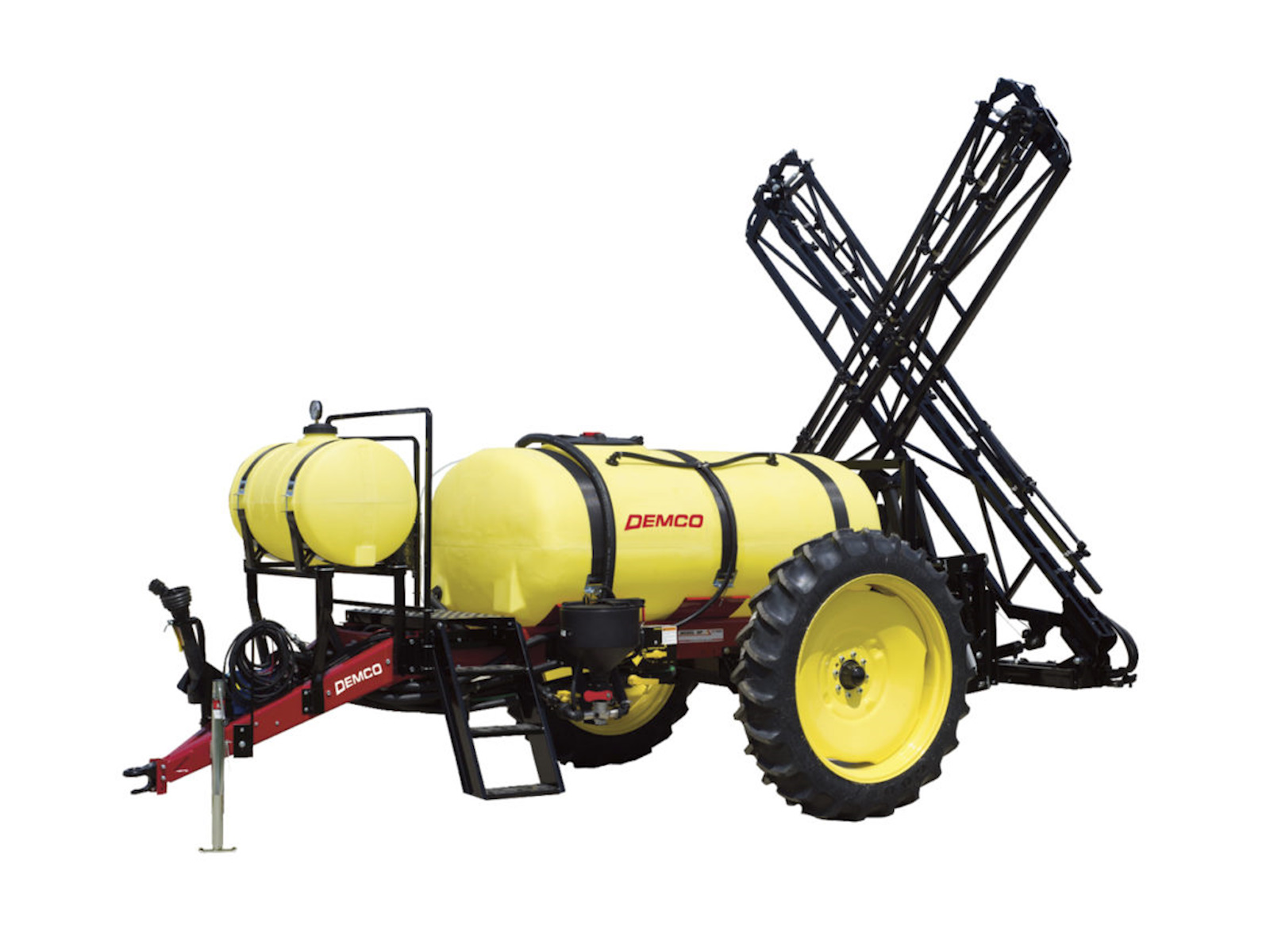

2027 Demco 500 Gallon Big Wheel Sprayers

Smaller Capacity Field Sprayer.
Demco’s 500 gallon trailer sprayer has a proven, time-tested design. Available with many different boom and pump options, as well as many accessories, Demco’s 500 gallon trailer sprayer can be configured for your application requirements.

If you need a smaller capacity field sprayer, you need to look at Demco!

Features May Include:

• 500 gallon polyethylene elliptical tank with two dual jet agitators, sump, baffle and 16" fliptop manway.
• 10 gauge formed steel trailer with ground clearance of 29".
• Axle configuration allows 62"- 120" infinite wheel spacing.
• 11.2 x 38 bias 6 ply tires provide a large narrow footprint with less field compaction.
• Constant velocity PTO shaft or hydraulic driven centrifugal pump.
• The hydraulic X-fold boom features independent wing leveling and independent wing folding. The X-fold boom transports at 10' 8"
• All booms have stainless steel boom and hose clamps.
• Height adjusment - 2' of travel.

Options:

Tank/Trailer Frame Assembly

• 9411027-10    500 Gallon Tank and Big Wheel Trailer (62" - 120" wheel spacing) (Red)

Pumps

• C1700D    Hypro® 5 Roller Pump
• 9425015    Hypro® Gear Drive Pump with Constant Velocity PTO Shaft (C9016 540)
• 9425026    Hypro® Belt Drive Pump with Constant Velocity PTO Shaft (C9403 540S)
• 9425056    Hypro® Hydraulic Pump (C9303HM1)(hoses included)
• 9425055    Ace Belt Drive Pump with Constant Velocity PTO shaft (PTOC600 10B150)
• 9425057    Ace Hydraulic Pump (FMC150HYD206) (hoses included)

Plumbing / Pump Mount

• 9425002    Roller Pump Kit (Manual Controls included)
• 9425020    Hypro® Gear Drive Centrifugal Kit
• 9425010    Hypro®/Ace Belt Drive Centrifugal Kit
• 9425011    Hypro®/Ace Hydraulic Centrifugal Kit

Controls

• 9428139    Manual Controls for Centrifugal Pumps
• 9428062    Solenoid Valves for Centrifugal Pumps
• 9428090    Motorized Ball Valves for Centrifugal Pumps
• 9428043    Raven® 450 Sprayer Control w/Motorized Ball Valves for Centrifugal Pumps

Hydraulic X-Fold Boom without Plumbing

• 9488125    45' Hydraulic X-Fold Boom with weight transfer kit
• 9488127    60' Hydraulic X-Fold Boom with weight transfer kit

X-Fold Boom Accessories

• 9428024    TeeJet® Drip Free (27 Nozzles) for 45' Hydraulic X-Fold Boom
• 9428026    TeeJet® Drip Free (37 Nozzles) for 60' Hydraulic X-Fold Boom
• 9428046    TeeJet® Triple Drip Free (27 Nozzles) for 45' Hydraulic X-Fold Boom
• 9428008    TeeJet® Triple Drip Free (37 Nozzles) for 60' Hydraulic X-Fold Boom
• 9488012    Wheel Assisted Boom Tip Protectors
• 9428084    Light Kit

Accessories

• CPTK1    Quick Refill (utilizes nurse tank transfer pump for refilling)
• DFS55HP    55 Gallon Water Tank and Mountings for Flushing the Sprayer Tank
• 9428156    33 Gallon Foam Marker
• 9428165    9428165a
• 9428002    Fence Line Spray Kit, Electric
• 9428003    Fence Line Spray Kit, Manual
• 9428068    Feeder Line Filter Kit (60 mesh)
• DBHG    Handgun (includes 25' of 1/2" hose)
